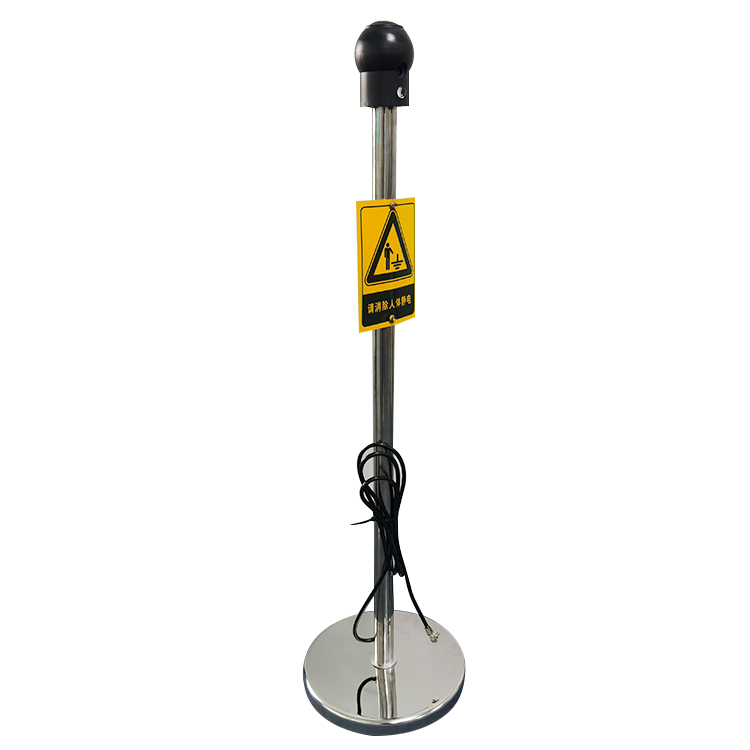

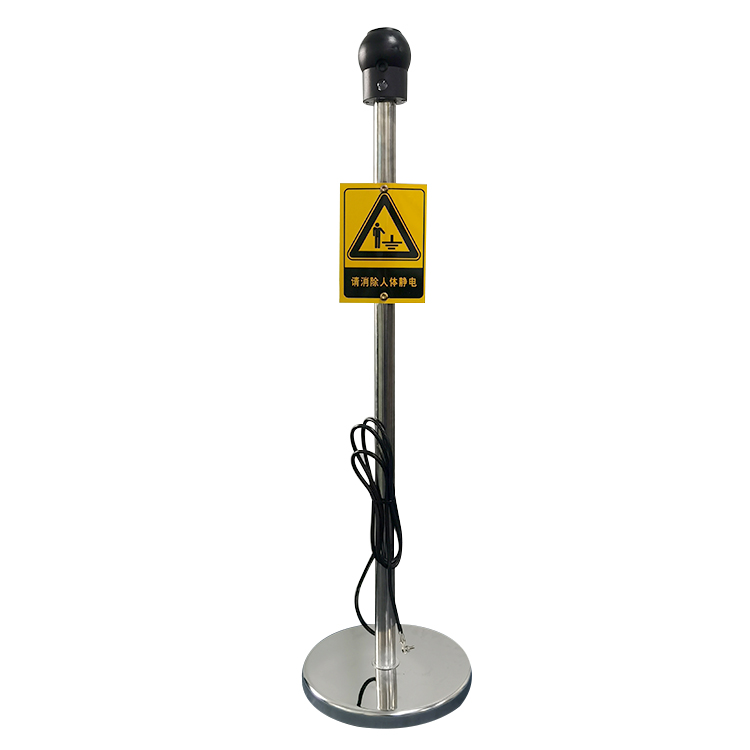

The Personal Electrostatic Discharge Eliminator is designed to safely remove static electricity from the human body before entering sensitive or hazardous work areas. Made from durable 304 stainless steel, it provides reliable performance, corrosion resistance, and long-term use in industrial environments.
This product is suitable for electronics, petroleum, chemical, gas station, laboratory, textile, military, and other industries where static control is required.
Key Features

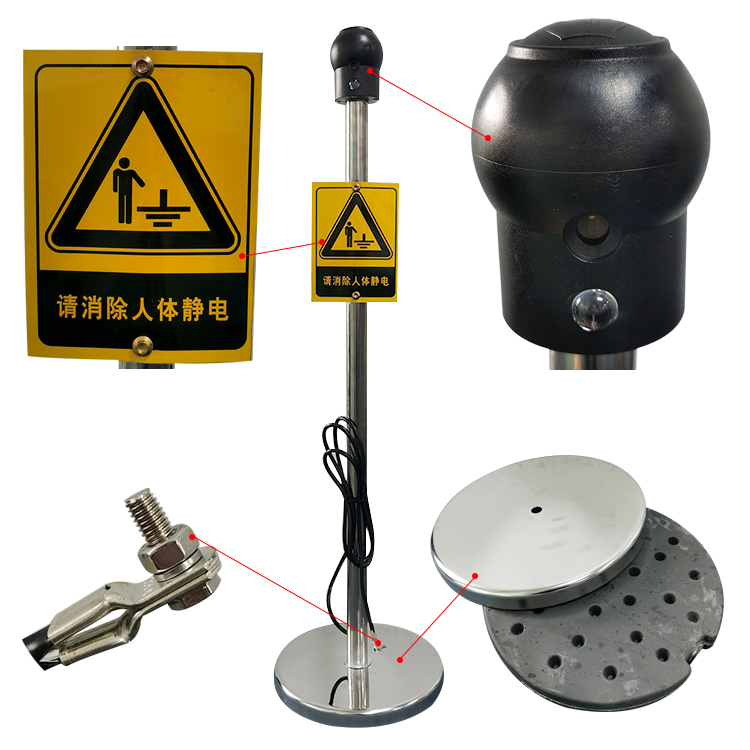

- Made from high-quality 304 stainless steel
- Touch-type induction with no mechanical moving parts

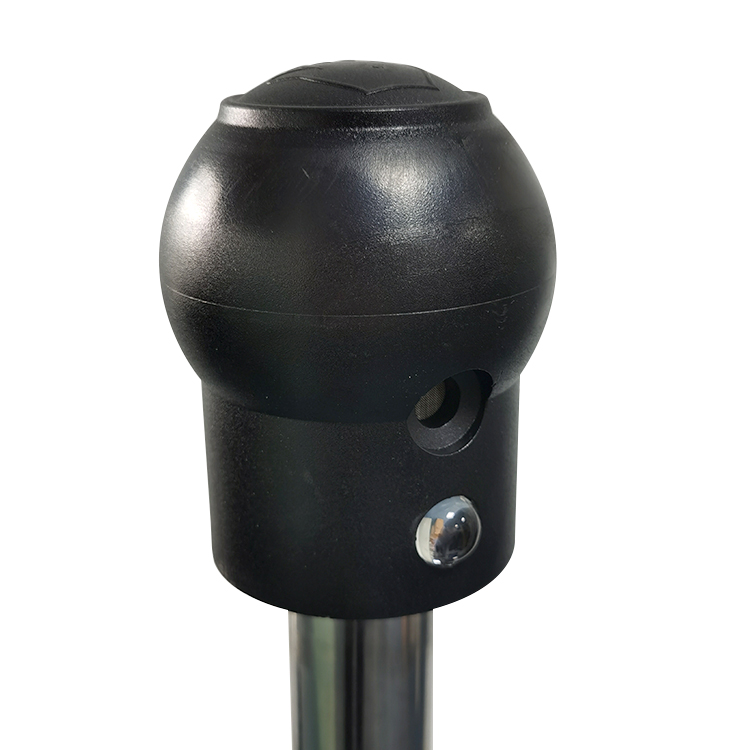

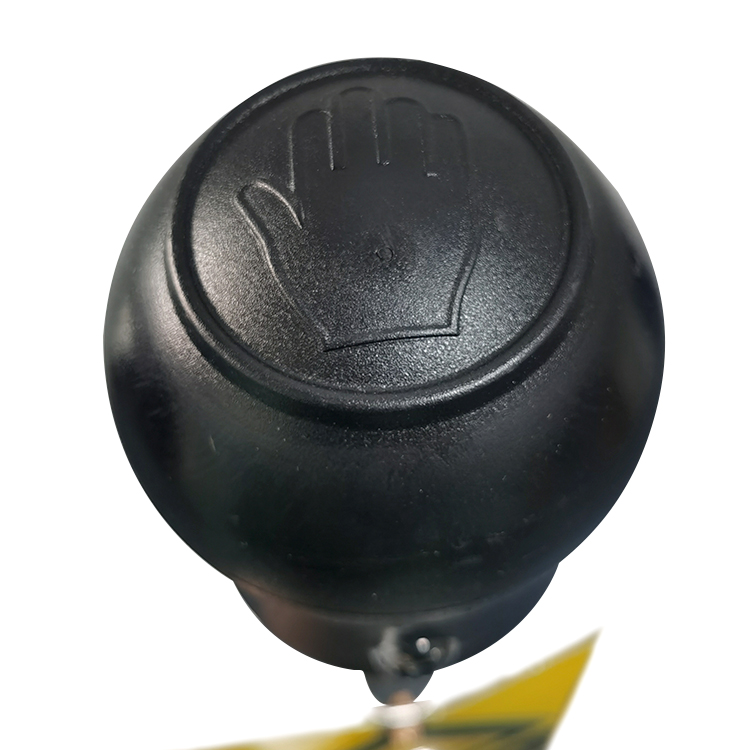

- Explosion-proof touch ball for safe static discharge
- Fully sealed with epoxy resin for anti-corrosion and waterproof protection
- Helps safely eliminate static electricity from the human body
- Suitable for indoor and industrial entrance areas
- Easy to install and connect to grounding equipment
Product Specifications
| Item |
Details |
| Product Name |
Electrostatic Eliminator |
| Brand |
allesd |
| Place of Origin |
Jiangsu, China |
| Material |
304 Stainless Steel |
| Color |
Stainless Steel |

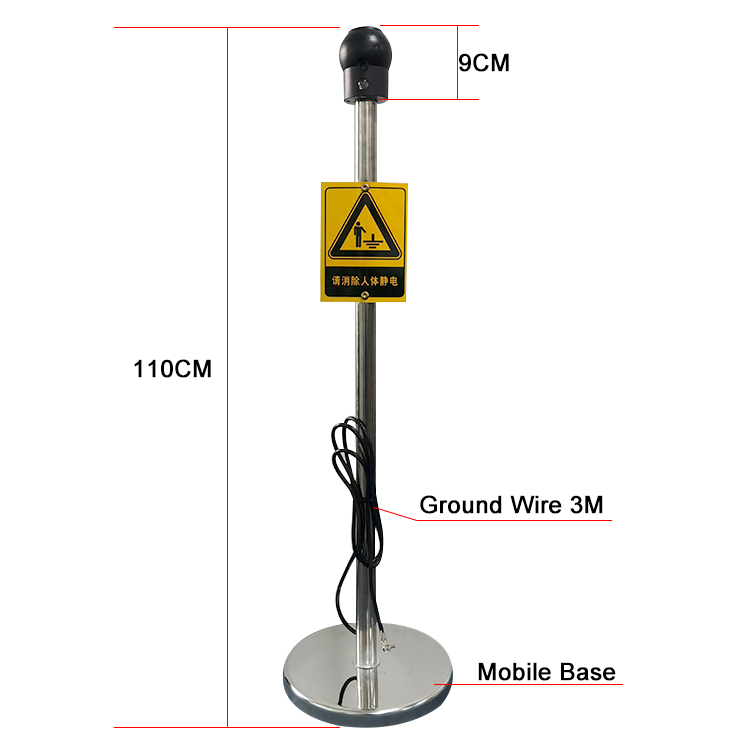

| Product Height |
1.1m / Wall-mounted: 20cm |
| Pole Diameter |
51mm |
| Touch Ball Diameter |
90mm |
| Mounting Flange Wall Thickness |
5.0mm |

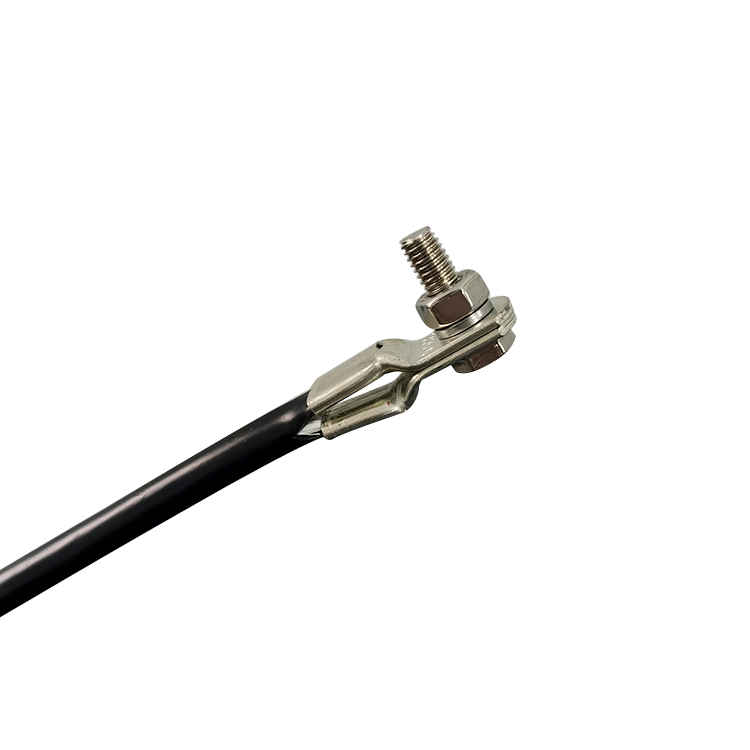

| Grounding Cable Length |
3mm Linear Cable |
| Application |
Electronic Industry, Petroleum, Chemical, Laboratory, Industrial Areas |
| MOQ |
1 Piece |
Applications
This electrostatic discharge eliminator is widely used in areas where human body static electricity must be safely removed, including:
- Oil depots and tank farm entrances
- Railway oil delivery platforms
- Pump rooms and oil storage areas
- Gas station unloading areas
- Self-service gas stations and automatic refueling machines
- Petrochemical sampling, temperature measurement, and tank filling areas
- Warehouses, workshops, and electronic production areas
- Laboratories, chemical plants, natural gas facilities, textile factories, and military industries
Installation and Use
- Fix the unit securely on the ground or designated installation area.

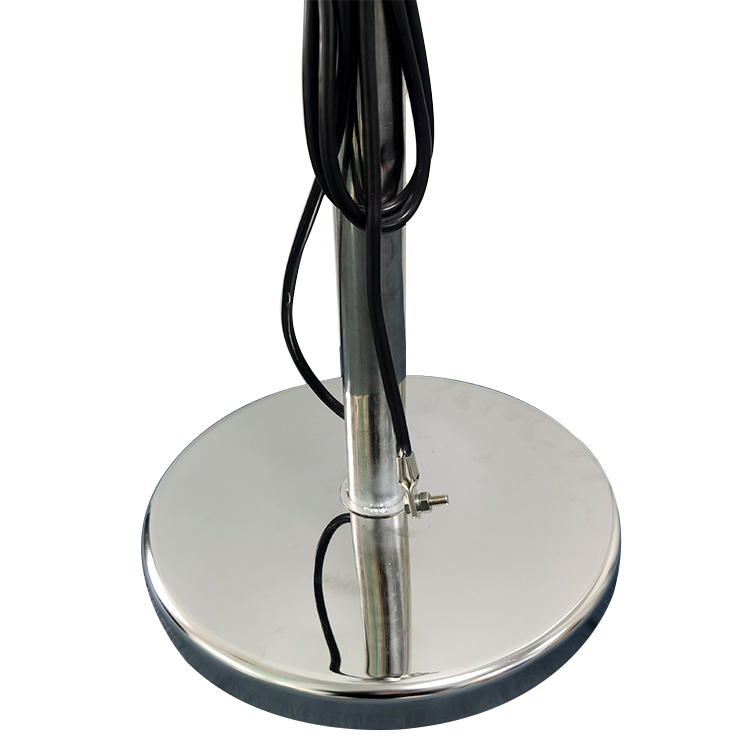

- Connect the vertical pole to a grounding grid, grounding pile, or other approved grounding equipment using the grounding cable.

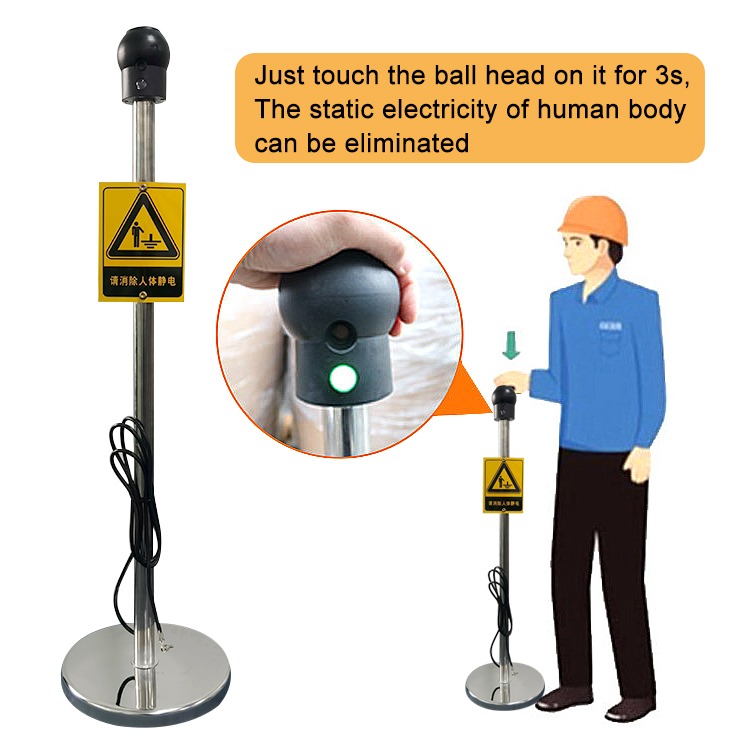

- Before entering the work area, touch the stainless steel ball for more than 3 seconds to safely and effectively discharge static electricity from the body.
- If no grounding grid is available, insert a metal rod approximately 30cm into the ground and connect the grounding wire to the rod.
Product Advantage
This static eliminator provides a safe, simple, and effective solution for controlling human body static electricity. Its strong stainless steel structure, waterproof sealing, and explosion-proof design make it ideal for both general industrial and high-risk environments.
