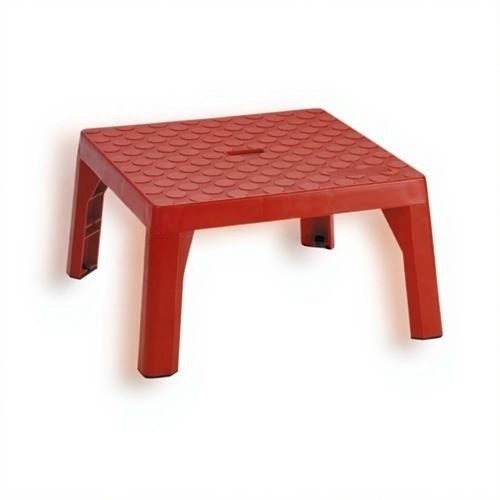

The Sofamel ST-45 Insulating Stool is a Class 5 platform rated for a working voltage of 45kV, giving operators insulation from earth during switching and manoeuvres in electrical installations. It is made from high-impact copolymer polypropylene in accordance with UNE 204001, with a rough non-slip platform and rubber-tipped legs for grip and wear protection.
Key Features
- Class 5, rated for 45kV working voltage
- High-impact copolymer polypropylene construction
- Manufactured in accordance with UNE 204001
- Rough non-slip platform surface
- Rubber tips on the legs for floor grip and wear protection
Specifications
| Brand | Sofamel |
|---|
| Model | ST-45 |
|---|
| Type | Insulating stool |
|---|
| Material | High-impact copolymer polypropylene |
|---|
| Class | Class 5 |
|---|
| Working Voltage | 45kV |
|---|
| Platform | 525 × 525mm |
|---|
| Surface (footprint) | 575 × 575mm |
|---|
| Standard | UNE 204001 |
|---|
Applications
Substations, switchrooms and HV installations where operators need an insulated standing point for switching, racking or testing.
Need a quote? Contact Haisar for pricing, bulk orders and delivery across Malaysia.
