| Brand |
VALUE-TECH |
| Model |
VAL-SE-S201-V2-BSH |
| Name |

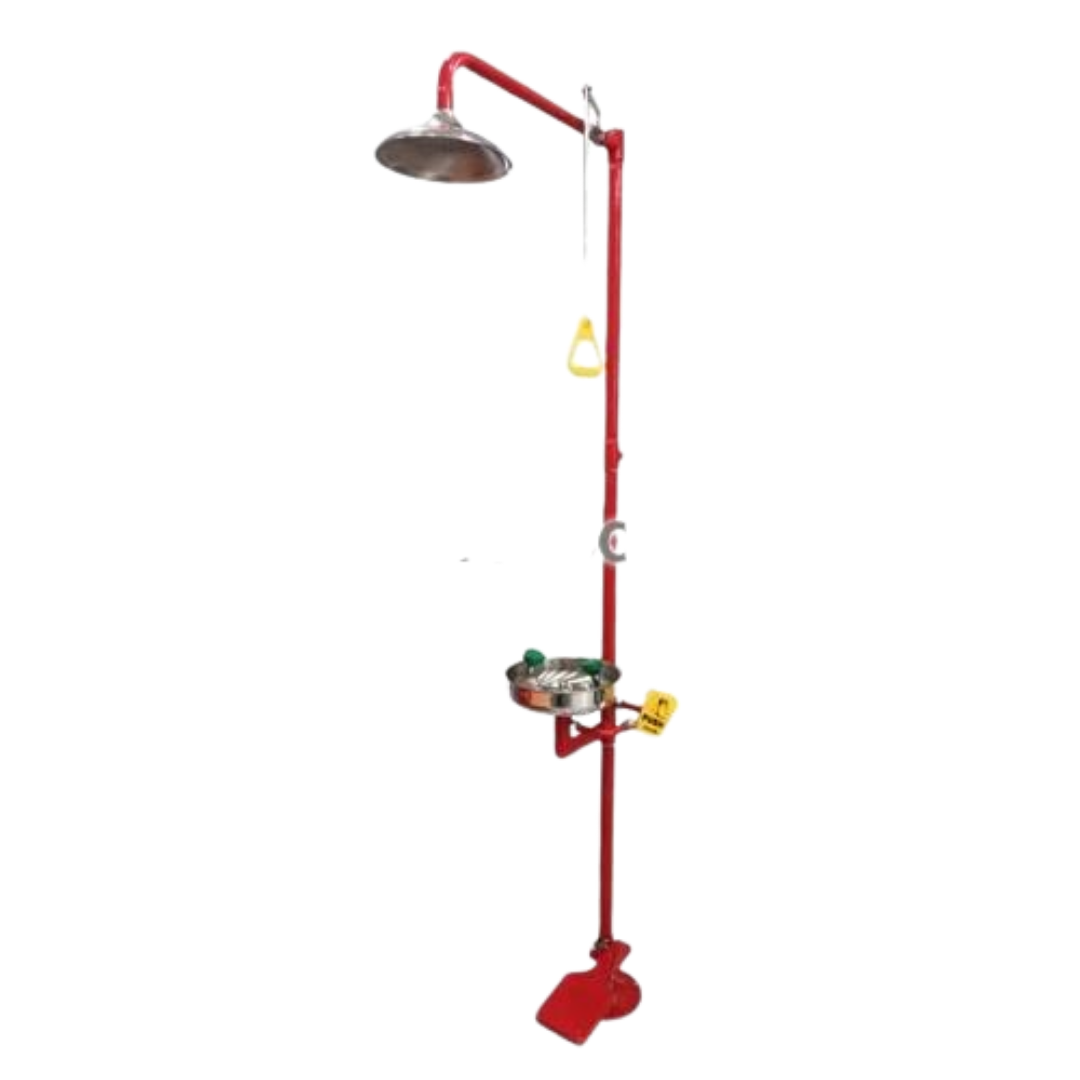

Stainless Steel Floor Mounted Combination Emergency Eyewash & Shower (Booster Shower Head) |
Emergency showers are designed to flush the user’s head and body. They should not be used to flush the user’s eyes because the high rate or pressure of water flow could damage the eyes in some instances. Eyewash stations are designed to flush the eye and face area only. There are combination units available that contain both features: a shower and an eyewash.
This newly developed emergency shower head features an advanced design that can optimizes water flow and complies with ANSI-required water shower patterns even in situations where incoming water pressure is less than 2 bar. This can be a good solution for location with low water pressure without add on water pressure pump.
]FEATURE:
- Increase water volume
- Consistently water flow
- Apply for low water pressure
- Achieved ANSI-required shower pattern
SPECIFICATION:
| Pipe & Fittings |
42mm Stainless steel 304 |
| Unit Body |
Chemical resistant red color coating |
| Shower Head Ball Valve |
Stainless steel 1″ BSP shower ball valve with pull rod |
| Eyewash Ball Valve |
1/2″ BSP eye wash ball valve with push board |
| Shower Bowl |
300mm – 304 stainless steel |
| Eyewash Bowl |
300mm – 304 stainless steel |
| Water Inlet & outlet |
1” & 1-1/4″ RP |
| Water pressure |
0.2Mpa – 0.6Mpa |
| Dimension ( W x H ) |
640 X 2300 mm |
