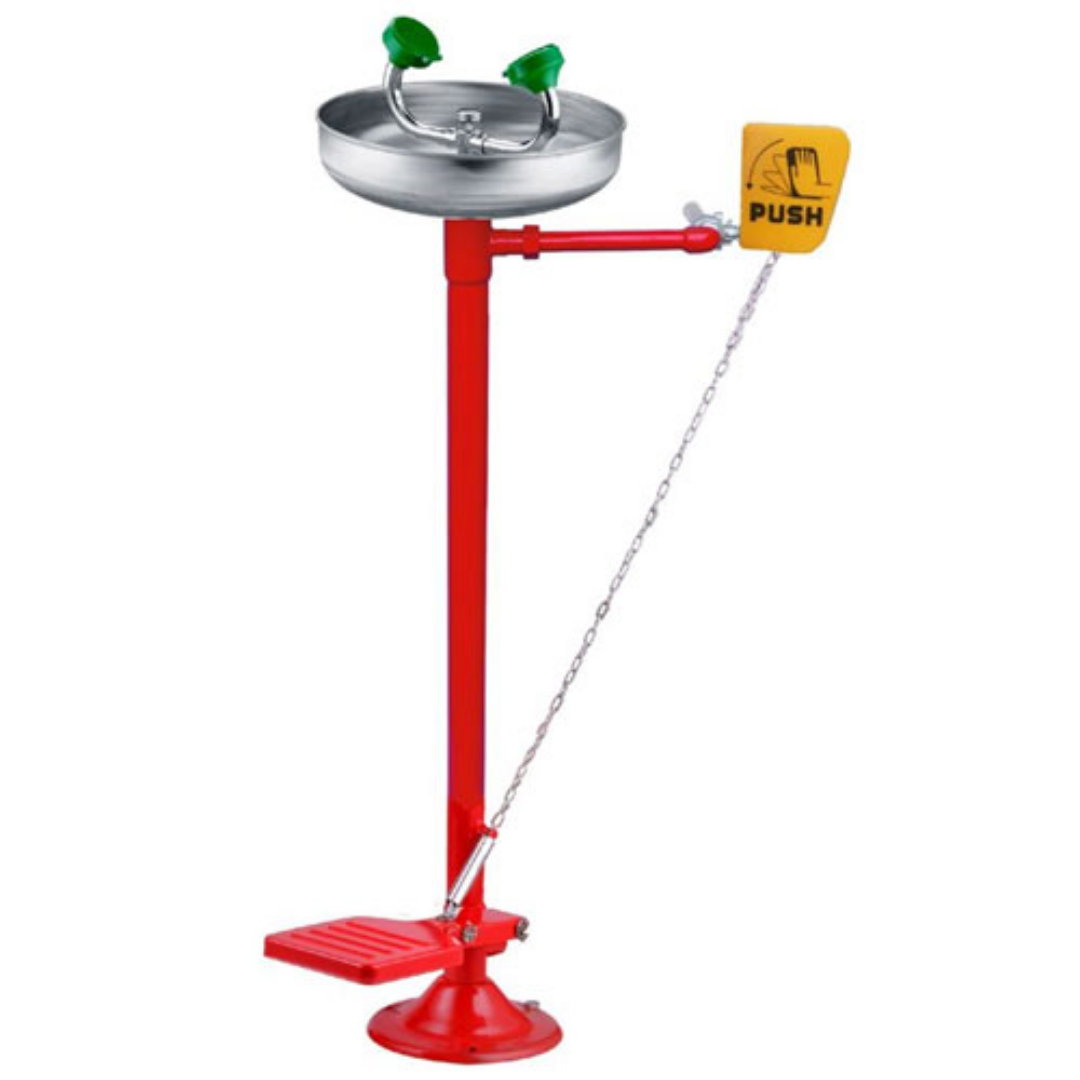

Emergency eye wash is used to drench or flush the eyes with water when dust, irritants, or chemicals enter the eye. Eyewash stations are designed to flush the eye and face area only. Eyewash station required in locations where workers are handling injurious corrosive or caustic chemicals. It must be accessible within 10-seconds of hazard, approximately 55-feet.

Description

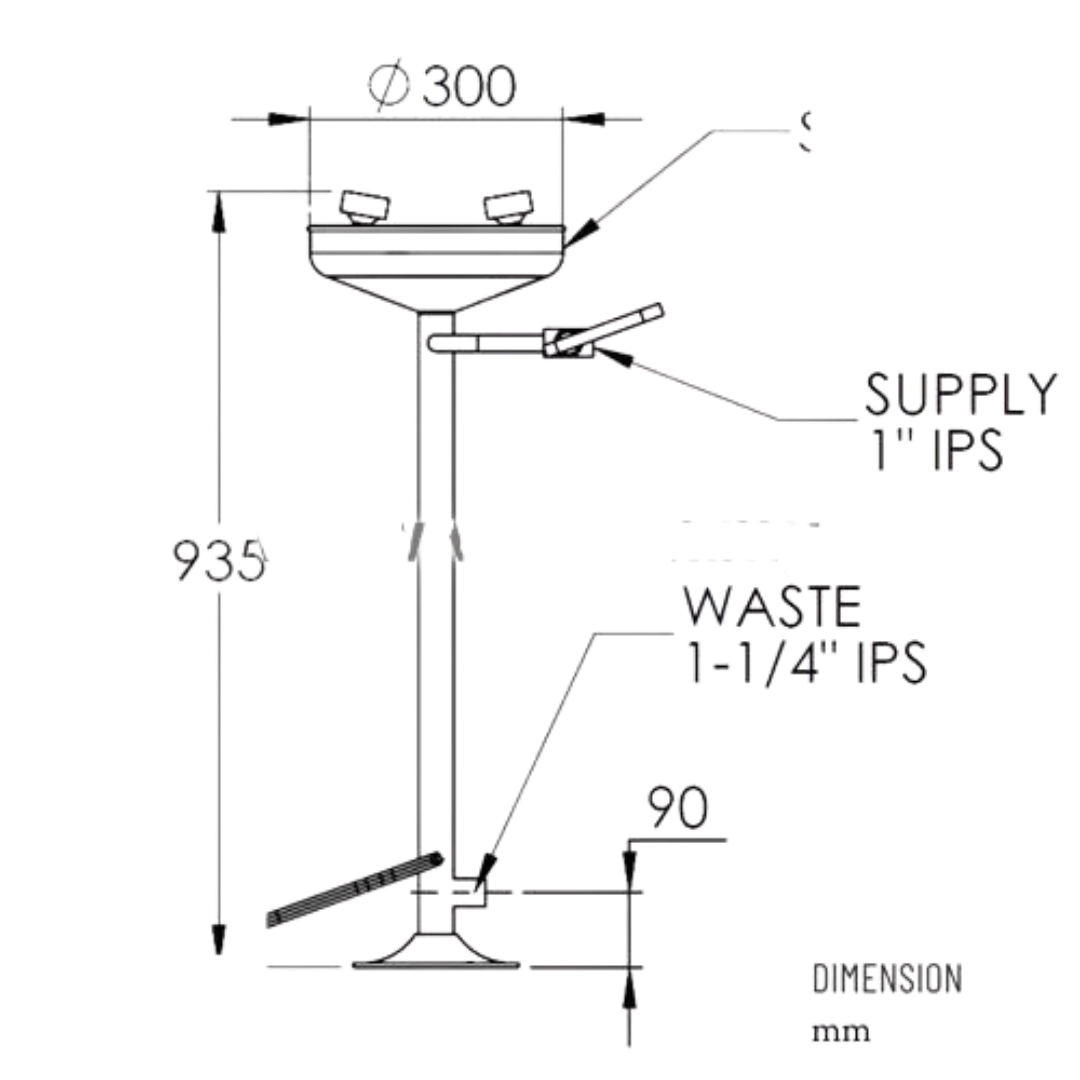

• Pipe & Fittings : 42mm Stainless steel 201 with chemical resistant red color coating
• Eyewash  Bowl : 300mm – 304 stainless steel
• Eye spray head: Chemical resistant PP, built-in with stainless steel filter for  impurity clearance.
• Foot Pedal : Stainless steel pedal with epoxy powder coated.
• Ball Valve: 1/2” BSP eye wash ball valve with push board.
• Water Inlet :  ½”BSP
• Waste Outlet : 1”BSP
• Water pressure : 0.2Mpa – 0.6Mpa
• Complied with ANSI and SIRIM TESTED
