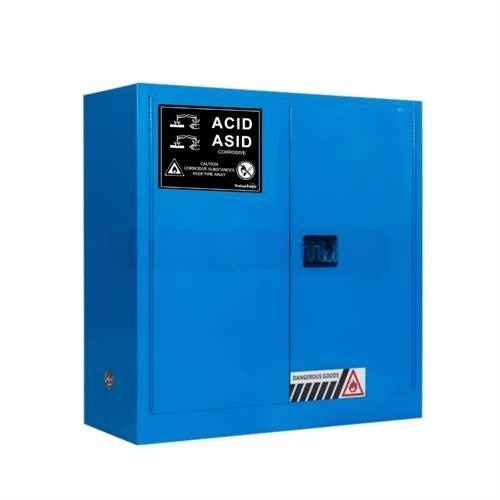

The V-CSB-C30 is a 30 gallon (114 litre) corrosive storage cabinet with a wide, waist-height body and stronger 100 kg shelves for heavier acid containers. Fully welded and fitted with three PP anti-corrosive trays, it suits busy factory and treatment plant chemical stores across Malaysia.
Key Features
- Wide, waist-height body with heavier 100 kg shelf capacity
- Fully welded 1.2 mm CRS steel body with 38 mm insulating air space
- Blue epoxy powder coat finish with good chemical resistance

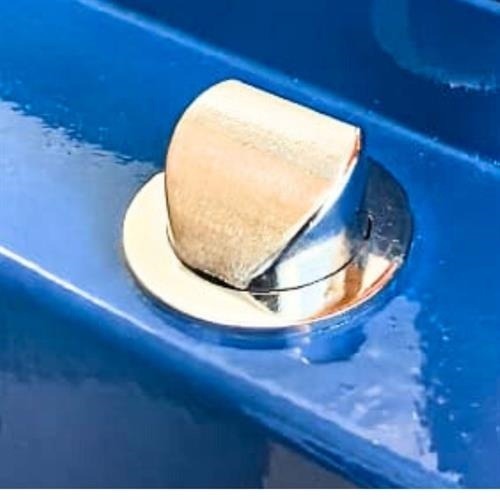

- Three-point locking with padlock and key lock latch, continuous piano hinge
- Dual vents with built-in flash arresters

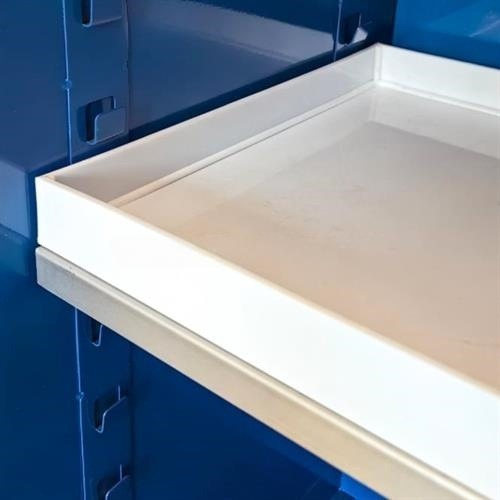

- PP anti-corrosive trays, 50 mm leakproof sump and grounding wire
Specifications
| Model | V-CSB-C30 |
|---|
| Capacity | 30 gal / 114 L |
|---|
| Body Structure | Fully welded |
|---|
| Adjustable Shelves | 2 |
|---|
| PP Anti-corrosive Trays | 3 |
|---|
| Shelf Capacity | 100 kg |
|---|
| Doors | 1 (as listed) |
|---|
| Dimensions (H x W x D) | 1120 x 1090 x 460 mm |
|---|
| Weight | 100 kg |
|---|
| Standards | OSHA 29 CFR 1910.106, NFPA 30 |
|---|
Applications
Factory chemical stores, water treatment plants, plating and etching lines and maintenance areas storing larger containers of acids and caustics.
Need a quote? Contact Haisar for pricing, bulk orders and delivery across Malaysia.
