High Voltage Switchboard Mat
| Name |
High Voltage Switchboard Mat |
| Model |
Insulation Rubber Mat |
| Type |
Insulation Rubber Mat |

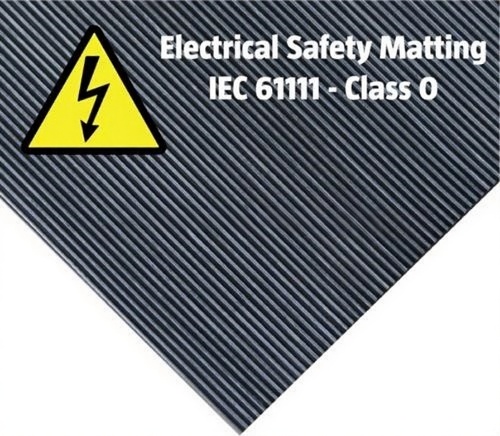

The high voltage switchboard mat, made of quality rubber, features an anti-slip surface for safety. It provides essential insulation for personnel, complying with the BS EN 61111:6009 standard.
- Made of high quality rubber which has a anti-slip surface.
- Element used to achieve the necessary insulation with respect to earth for people who carry out tasks or manoeuvres in installations.
- In accordance with BS EN 61111:6009 standard.
Specification:
- Class 0 : 10 KV , Grey Colour , 2.5mm Thickness , 915mm x 10,000 mm
- Class 1 : 20 KV , Black Colour , 3.0mm Thickness , 915mm x 10,000 mm
- Class 2 : 30 KV , Black Colour , 5.0mm Thickness , 1000mm x 10,000mm
- Class 3 : 40 KV , Grey Colour , 5.0mm Thickness , 1000mm x 10,000mm
- Class 4 : 50 KV , Grey Colour , 6.0mm Thickness , 1000mm x 10,000mm
